The Iron Horse
FOR THE WORKER
ONE INVESTMENT, A LOT OF OPPORTUNITIES
Tree felling and brush handling work places high demands on professional accessories adapted for this use. With the Iron Horse as a platform, it is possible to use the Iron Horse for transport, power source, winch, hydraulic unit, lift, etc.
read more about how the iron horse:
- GIVES MORE WITH THE SAME INVESTMENT
- REDUCES RICE HANDLING TIME
- CAN CREATE SOMETHING UNIQUE
WHAT does it mean for me to use the iron horse?
There are many advantages for tree surgeons or arborists to use the Iron Horse when working in gardens and parks. The equipment also does not require advanced knowledge and can be used by most people after a short introduction.
SHORTENS THE SET-UP TIME
Getting into the workplace quickly and starting work is important
The Iron Horse's compact dimensions and wide range of accessories make it easy to transport to and from the job site. There, it can be easily dismounted and configured as needed with the various accessories.
REDUCES THE RECOVERY JOB
Satisfy your customers and minimize the work of restoring any driving damage.
The low pressure on the rubber tracks minimises the need for restoration work on sensitive soil. If you choose the Essence model, you can really sneak up on your machine without damage.
INCREASE YOUR REACH
The unique off-road capabilities allow you to access more difficult areas with the same machine. The integrated winch further increases the reach.
DO MORE WITH ONE INVESTMENT
REDUCES RICE HANDLING TIME
Time is money.

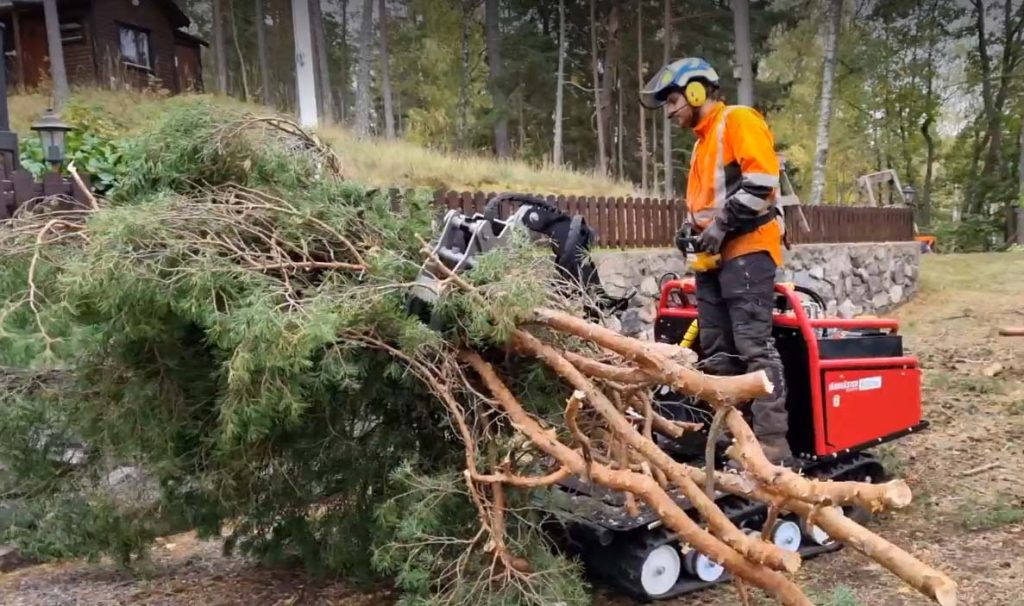

Both the Flex and Essence models can simplify the time-consuming task of handling twigs and branches with the specially developed grapple.
CREATE SOMETHING UNIQUE
FLEX SKOG
- Engine four-stroke 9 Hp or 13 Hp
- With or without hydraulics
- Retractable control lever so you can ride on the machine
- Front/Back
- Handbrake
- Torque converter transmission
- Integrated motor winch
- Timber bunk
- Standard hand operated winch
- Chainsaw mount
- Storage box
- Differential lock
- Steel skid plate
- Heavy Duty rubber tracks with inside lugs
- Removable tooling point, mechanically or hydraulically
- Load capacity 1 ton
- Traction power 900 kp
- Speed 7 km/h
- Ground pressure 0,15 kg/cm3 at 500 Kg load
- Width 1080 mm
- Height 1120 mm (Transport mode)
- Length 1780 mm
- Weight 445 - 485 Kg
- Color Black or Green
- Option Hydraulics 21 litres/min Pressure 140 bar
* The machine in the picture is additionally equipped with hydraulics and load plate. The hydraulics have a flow rate of 21 litres/min and press 140 bar to operate the accessories and the removable accessory attachment.
Winch Really strong motor winch with 20m, 6mm wire,
throw block and safety hook
Winch Really strong motor winch with pulling capacity of 1 Ton and 20m, 6mm wire,
throw block and safety hook
Driving Internal driving with Heavy Duty Band
Manual winch
Hydraulics 21 litres/min Pressure 140 Bar
Timber beam self-relieving
Accessory bracket can be moved to allow you to change
the centre of gravity of the load
Essence
- A mobile tool carrier that with its movable chassie provides superior terrain characteristics.
- A concept that can be quickly reconfigured into multiple applications.
- Hydrostatic drive that provides the possibility of larger engines as well as soft and flexible drive.
- Remote controlled
- High hydraulic capacity in both flow and pressure.
- Better load space for cargo and built-on applications than competitive products.
- Low ground pressure that causes minimal ground damage.
- Works in wet terrain and partly underwater.
- Wide accessory program for different segments and possibility for the customer to complement with their own attachments
Working hydraulics flow 45 l/min pressure 180 bar
Drive Internal drive with Heavy Duty drive belt
Movable chassis
Unique, movable chassis
for optimum centre of gravity
against the drive belts
Engine Honda iGX800
Honda's most modern,
2-cylinder, fuel-injected
engine with 18kW of power
LED lighting
Accessory lift TF700 with float mode, third function and tilt function and lifts 700 Kg.
With universal attachment for Avant or Multione accessories
Hydraulic winch with 800 Kg pulling capacity and 20m, 6mm wire,
throw block and safety hook
Winch
Really strong hydraulic
winch with 20m, 6mm wire,
throw block and safety hook
Accessory lift TF700
Accessory lift with universal attachment for Avant or Multione accessories
Tilt function
Arborist grab AG300
With folding guide, towing hitch and rope brake
Interchangeable fuel tank
The machine is supplied with a 10l painted steel fuel tank as standard. Can be exchanged for 20l.
Radio control
Professional radio control
with emergency stop and proximity sensor.
All functions are controlled from this unit.
Up to 100m range
Honda iGX800
Honda's most modern,
2-cylinder, fuel-injected
engine with 18kW of power
Drive wheels
Steel drive wheels for
operation in both mud and snow
Multiplatform
Platform with universal
screw strips for mounting
of more accessories
Rubber belts
Wide, soft
rubber drive belts
for minimal soil damage
Movable chassis
Unique, movable chassis
for optimum centre of gravity
against the drive belts
Grabber
Sturdy grabber with
large grab opening
for efficient rice handling
Want to know more?
Contact us for more information. You can reach us via the form below or call us on +46(0)573-392 00.
